DESCRIPTION

FEATURES

• 3-beam line laser to aid in 90-degree layout
• 2 times brighter diode to increase visibility in bright job-site conditions
• Built-in magnetic pivot bracket mounts easily on metal surfaces
• Micro adjust knob for precise alignment of 90-degree intersecting lines over greater distances
• Self-levelling cross line laser is accurate to ±0.3 mm/m in levelling applications
• Self-Levelling up to 4 degrees surface angle with automatic out of level indication, marks a levelled line in seconds
• 3 button operation and low battery indication for ease of use
• An adjustment dial for fine line movement (vertical & side)
• Built in magnetic pivot bracket mounts easily on metal surfaces
• Overmolded housing helps maintain calibration under jobsite conditions
• Includes 4 x AA batteries for 25 hours runtime
• Kit box protects unit and helps maintain calibration when stored in gang box
• Compatible with DE0892 (sold separately) for increasing detection distance up to 50m

  SPECIFICATION
• Laser Class: 2, <1mW
• Accuracy (Pøesnost): +/-0.3 mm/m
• Number of Beams: 3
• Direction of Beams: Vertical / Level / Side
• Indoor Visibility Range: 15 m
• Self-Levelling Range: +/-4 °
• Power Supply: 4 x AA Batteries 6.0v
• Tripod Connection: 1/4"
• Weight (incl. Batteries): 0.8 g
• Width: 80 mm
• Length: 135 mm
• Height: 145 mm

SPECIFICATION

Model	DEWALT DEW089K - DW089K 3 Way Self-Levelling Multi Line Laser
Part No.	DW089K
Voltage	4 x AA Batteries 6.0v Volts

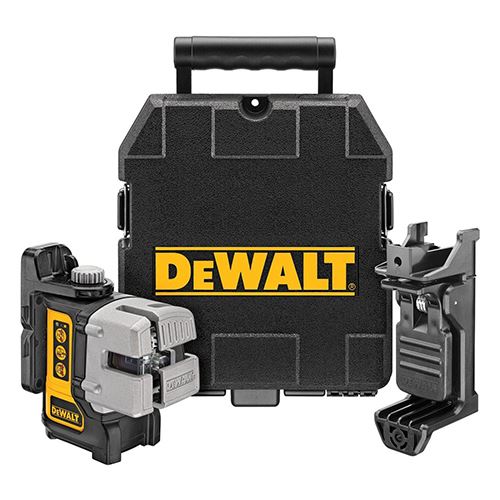

Items Included	1x DW089 Multi Line Laser,4x AA Alkaline Batteries,1x Wall Mount Bracket,1x Heavy Duty Carry Case
