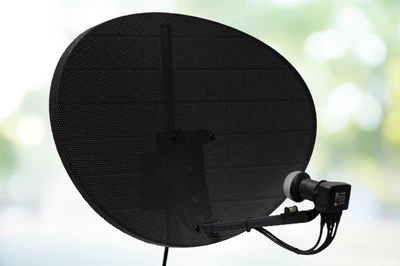

60cm Mesh Sat. Dish with Octo (8) LNB for Sky & Free to Air
Providing you with Sky TV, Freesat and Free to Air applications, this satellite dish is the most widely used satellite dish in Ireland. This Satellite Dish with Octo LNB allows for eight feeds to be run from the dish to which can supply eight standard Free to Air / Standard Sky room installs or four Sky+, Sky+ HD or Freesat+ installs.
The superior construction allows you to withstand harsh weather conditions while delivering a powerful signal strength.
The superior construction allows you to withstand harsh weather conditions while delivering a powerful signal strength.
Features:
Superior Manufacture & Design
 |
This satellite dish & Twin LNB are both designed with approved and certified materials to provide you with the most powerful signal strength. |
Outstanding Performance & Signal Gain
 |
This satellite dish is a Zone 2 - giving it a higher signal gain than zone 1 which allows for a better reception and exceptional performance. |
Compatibility
 |
Built and designed to withstand the harsh Irish weather, this satellite dish ensures a clear signal reception even during harsh weather environments. |
Multiroom Setups
 |
You can arrange up to 2 standard or a single Sky+ boxes from a dish which allows you to cut costs and unnecessary time. This means up to 2 rooms can be fed from the Twin LNB. |
HD Ready
 |
This satellite dish is HD ready, allowing you the freedom to enjoy crystal clear video and superior audio once assembly is complete. |
Assembly Instructions Included
 |
While installation of this satellite dish is not extremely demanding, it does take confidence. Instructions on installation are included with this purchase. |
Technical Information:

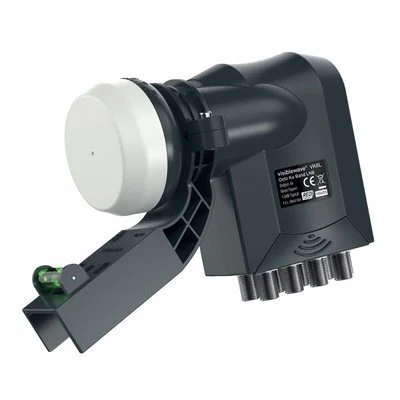

Octo LNB
- Input Frequency Low Band: 10.7~11.7GHz
High Band: 11.7~12.75GHz
- Feedhorn - Linear Optimised for offset dish
- Output Frequency Low Band: 950~1950MHz
- Output VSWR (950 - 2150MHz) Ratio 2.0:1 (typ.), 2.5:1 (max.)
- L.O. Stability ±1.3MHz @ 25°C ~ ±2.5MHz @ -40~70°C
- L.O. Phase Noise @ 1kHz: -65dBc/Hz (typ.), -55dBc/Hz (max.)
@ 10kHz: -85dBc/Hz (typ.), -75dBc/Hz (max.)
@ 100kHz: -100dBc/Hz (typ.), -90dBc/Hz (max.)
- Conversion Gain 54~65dB @ 25ºC, 53~65dB @ -40ºC~70ºC
- Gain Flatness Over Full Band 5dB P-P (typ.), 8dB P-P (tmax.)
- Gain Flatness @ 26MHz ± 0.5dB P-P (typ.)± 0.75dB P-P (max.)
- Gain Flatness Over 300MHz ± 4dB P-P (typ.), ± 5.5dB P-P (max.)
- Spurious Gain @ 1.7GHz 48dB (typ.) -45dB (max.)
- Cross Polar Isolation 18dB (min.)20dB (typ.)
- Image Rejection 37dB (min), 40dB (typ.)
- Current Consumption 210mA (typ.), 360mA (max.) 12V
- Connector Type 75 female F-connector
- Operating Temp -30'C ~ +70'C
- RED Compliance EN 303 372-1
Satellite Dish
- Weatherproof: Yes
- Surface: Mesh
- Shape: Oval
- Indoor/Outdoor: Outdoor
- Included Brackets: Satellite Bracket, Elevation Bracket, LNB Feed Arm, L Tube, Wall Adapter and Fixing Kit
Retailer Information:
This product is sold in single boxes and is suitable for retail, the product has the following EAN bar code:
Dimensions & Weight of Singular Satellite Dish Box
Width: 30inches (76.2cm)
Height: 25inches (63.5cm)
Depth: 4inches (10.16cm)
Weight: 5KG
*To ensure safe delivery of this product, product must be purchased in quantities of 4 units*
Dimensions & Weight of Shipping Carton for 4 x Satellite Dishes
Width: 120inches (304.8cm)
Height: 100inches (254cm)
Depth: 16inches (40.64cm)
Weight: 20KG
